Partner-tech SP-800 med Omega kassasystem

Partner-tech SP-800 med Omega™ kassasystem

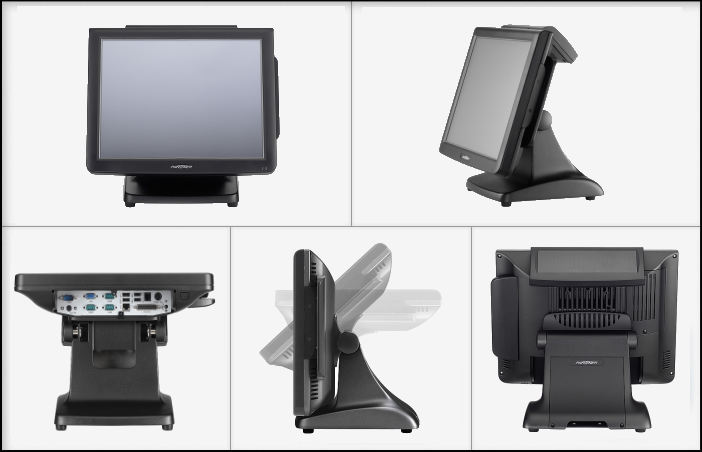

Touch Terminal SP-800 Beauty and Elegance

Meets the POS Demands of today. Today´s customers business is constantly demanding more from their POS system. The business requires for POS capabilities is higher than ever.

Parner Tech, your true Partner is POS, developed the new compact and powerful 1.8GHz Dual Core SP-800 to meet both of these trends: increased power and cost effectiveness. The SP-800, housed in a beautiful and elegant aluminum body, utilizes a fanless dual core ATOM processor with up to 4GB of RAM, to meet the today´s demand for performance and reliability.

Anslutbara tillbehör
1 x Mini PCI-e,
support WiFi module
3-track MSR
Customer display module
(2 x 20 VFD)
Biometric reader
Smart Card Reader
I-Button
RFID reader
SSD
Integrerad Kontokortskoppling EMV
Handterminal
Personalliggare, kassörkort, Presentkort,
VIP-kort & Lunchkort.
Köks/barskrivare
Scanner
Visma administration
Fortnox
Dispenser
Distans supportmodul
Med mera . .

Egenskaper
Elegant and robust
aluminum housing
Powerful 1.8GHz
dual-core processor
DDR3 memory support
up to 4GB
Flexible modular design
and dual display support
Spill and dust
resistant front panel
Convenient wall mount and
wired till angle
Green low power consumption
Bordshantering
Bordskarta/Bordshantering
Avhämtningsfunktion med prisskift
Lagerhantering
Bokning
Kraftfull rapportgenerator
Backup funktion
Valutahantering
Kundhantering
Recepthantering
Parkera/Visa order
Tillfällig avstängning av bongutskrift.
Korrigeringar & Rabatter
Avhämtning innan, efter & under transaktionen.
CL funktion vid spritförsäljning
Dela nota
Köksmeddelande
Rapportutskrift på A4
Med mera…

Produktspecifikation
CPU: Intel® Atom processor
D525 (1M L2 Cache, 1.8 GHz,
Dual Core)
LCD: 15" active color
TFT-LCD,
resolution 1024x768
Touch: 5-wire resistive
ELO Touch (PS/2 Interface)
Memory: 204pin DDR3 SO-DIMM
1GB (2DIMM Sockets up 4GB)
LAN: IEEE 802.3 10/10/1000
Mpbs onboard Gigabit
Ethernet controller
Storage: Internal 2.5"
type SATA HDD 160GB or higher
I/O Interface:
4x COM ports; COM 1~4 on rear I/O
COM 1~2 powered with DC+0/5/12V,
(BIOS selection),
COM 3~4 without power
1x DB-15 VGA port
1x DB-25 for LTP port
1x RJ11 port supports
2 cash drawer (DC+24V)
1x RJ-45 LAN port with
activity and link LEDs
1x PS/2 KB or 1x DC+12V out
4x USB 2.0
O/S POSready
1x DC + 12V inout power jack
Expansion Options: 1x Mini PCI-e
support WiFi Module
Power Supply: AC100 ~ 240V/
DC+12V. 90 watt power
Dimensions: 360(W)x233(D)x313(H)
Environment: Operating
Temperature 0°C~+40°C
Humidiy: 15%~80%
Certification: CE/FCC,CCC,
VCCC, BSMI, Class A
