Partner-tech PT-8850 med Omega kassasystem

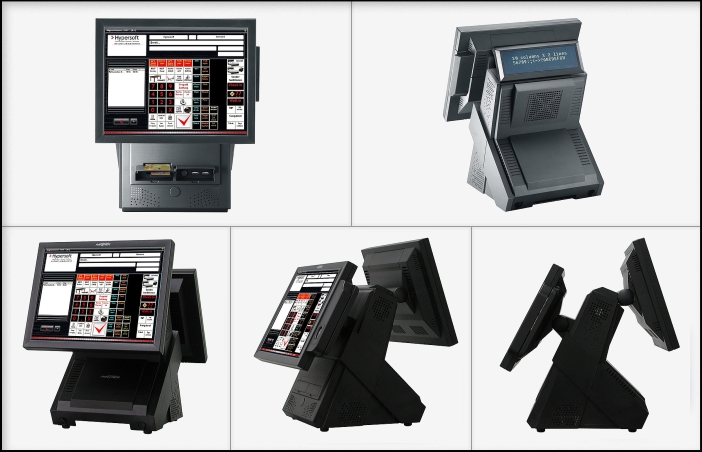

POS Terminal PT-8850 High POS Performance
The PT-8850 is a top-of-the-range POS terminal system with an impressive technological configuration.
It is space saving and particularly service compatible and has an Intel Core 2 Duo processor. An outstanding processing power is guaranteed. It is also available with an additional monitor, offering a real benefit. That means customers can follow the checkout transaction in real time or additional product information about goods purchased or the receipt can be displayed.
With the double touch screen option it can be used from two sides i.e. at a bar. Bartender from one side and a waiter from the other side can operate the POS or it can be used for direct interactive communication with the customers
Anslutbara tillbehör
2 x 20 VFD customer display
2 x 20 alphanumeric display
15“ Dual Screen
Card Reader
Dual or three track Magnetic
reader
Smart Card Reader
Biometric Reader
KB-32 32 key keypad
additional 2nd hard drive
RFID
I-Button
Fingerprint
RAID
SSD
Integrerad Kontokortskoppling EMV
Handterminal
Personalliggare
kassörkort
Presentkort
VIP-kort & Lunchkort.
Köks/barskrivare
Scanner
Visma administration
Fortnox
Dispenser
Distans supportmodul
Med mera . . .
Egenskaper
Intel CoreTM 2 Duo Processor
Two-sided operation
15“ ELO Touch Screen
Low energy consumption
Adjustable monitor
Power USB
Internal power supply
Bordshantering
Bordskarta/Bordshantering
Avhämtningsfunktion med prisskift
Lagerhantering
Bokning
Kraftfull rapportgenerator
Backup funktion
Valutahantering
Kundhantering
Recepthantering
Parkera/Visa order
Tillfällig avstängning av bongutskrift.
Korrigeringar & Rabatter
Avhämtning innan, efter & under transaktionen.
CL funktion vid spritförsäljning
Dela nota
Köksmeddelande
Rapportutskrift på A4
Med mera…
Produktspecifikation
LCD: 15” XGA Color TFT-LCD,
Resolution 1024 x 768
Touch: 5-wire resistiver
touch (RS-232 interface)
CPU: Intel Core 2 Duo
Prozessor E6400 2.13 GHz,
FSB 1066 MHz, L2 cache 2 MB,
TDP 65 W, Pentium Dual-core
Prozessor E2160 @ 1.80 GHz,
FSB 800 MHz, L2 cache 1MB,
TDP 65 W, Celeron Prozessor
440 @ 2.0 GHz, FSB 800 MHz,
L2 cache 512 KB, TDP 35 W
Chipset: NB–Intel LE82Q965,
SB–Intel FW82801 HB
Memory: 200-pin DDR2 SO-DIMM
x 2, System shipping with
1 GB as the standard
BIOS: Award System BIOS,
4 M bits flash ROM
Graphics: Intel®852GM(E)
integrated dynamic video
shared memory On board LVDS
connector for LCD support Max.
shared memory of 128MB
(default 16 MB) Dual Display:
support dual view,dual contents
Ethernet: 10/100/1000 On-Board
Ethernet controller
Audio: Realtek 4-Channel
High Definition Audio Codecs
HDD & Storage: Internal 3.5“
type HDD (80 GB or above)
I/O: Interface 4 * COM ports,
1 * RJ11 port,
1 * PS2 Maus & Keyboard port,
1 * Parallel port,
1 * RJ-45, 4*USB ports
((2 x Powered USB with 12VDC
& 24VDC on rear IO panel),
1 * MIC-IN port,
1 * LINE-OUT port &
1 * VGA port
O/S POS Ready
Power Supply: AC115~230 V
220 Watt Power supply
Environment: Operating 0~40° C
Humidity: 20%~80%
Certification: CE, FCC, UL,
CB, VCCI, BSMI
Dimension: 375(L)x344(W)x383(H)
