Partner-tech PT-8800 med Omega kassasystem

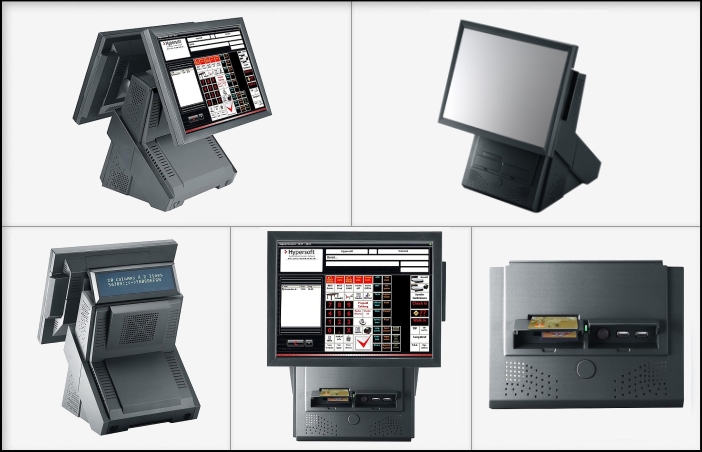

POS Terminal PT-8800 High POS Performance
The PT-8800 is a top-of-the-range POS terminal system with an impressive technological configuration.
It is space saving and particularly service compatible. The PT-8800 is available with an Intel® Pentium IV CPU.
An outstanding processing power is guaranteed and it is also available with an additional monitor, offering a real benefit. This means customers can follow the checkout transaction in real time or can be provided with additional product information about goods purchased or the receipt. With the double touch screen options it can be used from two sides i.e. at a bar. Bartender from one side and a waiter from the other side can operate the POS or it can be used for direct interactive communication with the customers.
Anslutbara tillbehör
2 x 20 VFD customer display
15“ Dual Screen
2 x 20 alphanumeric display
Card Reader
Smart Card Reader
Options Dual or
three track Magnetic reader
Biometric Reader
additional 2nd hard drive
RFID
I-Button
Fingerprint
KB-32 32 key keypad
RAID
SSD
Integrerad Kontokortskoppling EMV
Handterminal
Personalliggare, kassörkort, Presentkort,
VIP-kort & Lunchkort.
Köks/barskrivare
Scanner
Kunddisplay
Visma administration
Fortnox
Dispenser
Distans supportmodul
Med mera . . .
Egenskaper
Intel® Pentium IV CPU
Two-sided operation
Low energy consumption
Adjustable monitor
Power USB
Internal power supply
Bordshantering
Bordskarta/Bordshantering
Avhämtningsfunktion med prisskift
Lagerhantering
Bokning
Kraftfull rapportgenerator
Backup funktion
Valutahantering
Kundhantering
Recepthantering
Parkera/Visa order
Tillfällig avstängning av bongutskrift.
Korrigeringar & Rabatter
Avhämtning innan, efter & under transaktionen.
CL funktion vid spritförsäljning
Dela nota
Köksmeddelande
Rapportutskrift på A4
Med mera…
Produktspecifikation
LCD: 15” XGA Color TFT-LCD,
Resolution 1024 x 768
Touch: 5-wire resistiver
touch (RS-232 interface)
CPU: Intel Pentium 4 2.8 GHz
FSB speed 533/400 MHz
Chipset: NB–Intel 82852GME,
SB–Intel 82801DB
Memory: 184-pin DDR DIMM x 2,
System shipping with
1 GB as the standard
BIOS: Award System BIOS,
4 M bits flash ROM
Graphics: Intel®852GM(E)
integrated dynamic video shared
memory On board LVDS connector
for LCD support Max.
shared memory: 64 MB
Dual Display: support dualview,
dual contents
Ethernet: 10/100/1000 On-Board
Ethernet controller
Audio: Realtek Two-channel
AC‘97 2.3 Audio Codec
HDD & Storage: Internal 3.5“
type HDD (80 GB or above)
compact Flash Card slot,
I/O Interface 4 * COM ports,
1 * RJ11 port,
1 * PS2 Mouse & Keyboard port,
1 * Parallel port,
1 * RJ-45, 4*USB ports
((2 x Powered USB with 12VDC
& 24VDC on rear IO panel),
1 * MIC-IN port,
1 * LINE-OUT port &
1 * VGA port
O/S: POS Ready
Power Supply: AC115~230 V
220 Watt Power supply
Environment Operating Storage
Temperature: 0~40° C -20~60° C
Humidity: 20%~80% 10%~80%
Certification: CE, FCC, UL,
CB, VCCI, BSMI
Dimension: 375(L)x344(W)x383(H)
