Partner-tech PT-6915 med Omega kassasystem

Partner-tech PT-6910 med Omega™ kassasystem

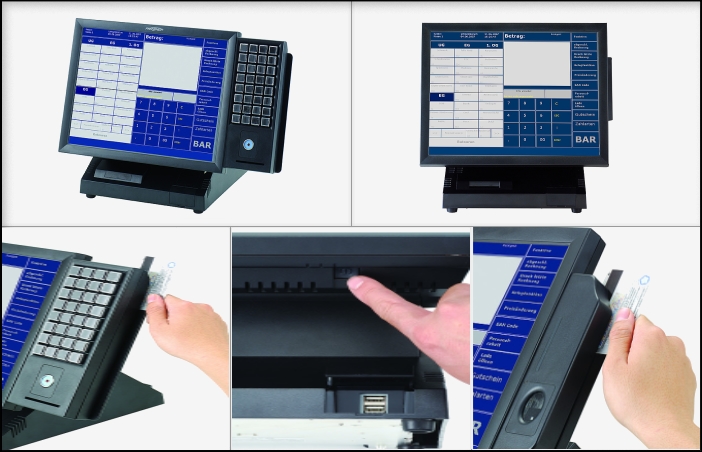

POS Terminal PT-6915 The fanless POS solution

The PT-6915 is not only user-friendly designed - these high-end product is also equipped with a high-performance Celeron M CPU that guarantees particularly efficient and powerful processing, a 15" TFT touch screen monitor and low energy consumption, which contributes noticeably to the reduction of long-term costs.
The compact form and dimension of the PT-6915 is ideal when space is limited. Another factor contributing to its extreme reliability and absolute minimum maintenance requirements is that this product can have no moving parts. The adjustable 15" TFT touch screen monitor can be adjusted to suit the needs of any workplace. Various optional peripherals allow the PT-6915 to be individually matched to any working situation



Anslutbara tillbehör
2 x 20 alphanumeric display
I-Button
KB-32 keyboard
Fingerprint
Card Reader
RFID
2nd LCD 15’’ Display
Dallas Lock
Addimat Lock
Integrerad Kontokortskoppling EMV
Handterminal
Personalliggare, kassörkort, Presentkort,
VIP-kort & Lunchkort.
Köks/barskrivare
Scanner
Kunddisplay
Visma administration
Fortnox
Dispenser
Distans supportmodul
Med mera . . .

Egenskaper
5-wire resistive touch screen
Fanless
Low energy consumption
Adjustable monitor
External power supply
Bordshantering
Bordskarta/Bordshantering
Avhämtningsfunktion med prisskift
Lagerhantering
Bokning
Kraftfull rapportgenerator
Backup funktion
Valutahantering
Kundhantering
Recepthantering
Parkera/Visa order
Tillfällig avstängning av bongutskrift.
Korrigeringar & Rabatter
Avhämtning innan, efter & under transaktionen.
CL funktion vid spritförsäljning
Dela nota
Köksmeddelande
Rapportutskrift på A4
Med mera…

Produktspecifikation
CPU: Intel® Celeron-M 1.5GHz,
FSB 400 MHz, L2 cache 1 M,
Fanless
NB: Intel® QC82910GMLE
SB: Intel® NH82801FBM
Memory: DDR 2 400/533 MHz
200 Pin SO DIMMx1, max. 2GB
HDD: 3.5” SATA HDD
CF: 1 (Cable + Module, IDE)
USB: Port 8
(2 reserved for DOC)
Com Port / Power
com (5V/12V): 6/4
Touch controller: eGalax
(COM5, DC + 5 V)
Cash drawer: One RJ-11 Cash
drawer port support DC + 24 V,
2 cash drawer kick out/status
Printer Port: 1 x parallel
LAN: 10/100M/1G (RTL8110)
Audio/MIC Port: Available
Power Type: Adapter 19V (4.75A)
VGA Port: D-15 sub
Dual Display: Available
BIOS: Award 4 M (LPC)
LCD Panel: AUO-G150XG03
(Replaceable lamp)
Touch Panel: 5-wire resistive
or capacitive
O/S: POSReady
Dimension: 259(L)x344(W)x331(H)
